1900.C vacuum sintering furnace 1900 degree graphite heating vacuum furnace for annealing sapphire and sultanate (Al2O3 (OH))

1 Set
MOQ
1900.C vacuum sintering furnace 1900 degree graphite heating vacuum furnace for annealing sapphire and sultanate (Al2O3 (OH))
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Classification: Laboratory Heating Equipments
Model Number: SV2-2-19TP
Application: 1900 degree Vacuum annealing furnace
type: heat treatment vacuum annealing furnace
style: vacuum sintering furnace 1900.C
Maximum temperature: 1900.C
Working temperature: 1800.C
heating rate: 0-30.C /min
heating element: graphite rod
Use: high vacuum furnace for sintering
Temperature Accuracy: ±1℃
Usage: heat treatment vacuum furnace 1900.C
Grundinformation
Model Number: SV2-2-19TP
Zahlung und Versand AGB
Packaging Details: Plastic paper inside, Polyfoam filled, Wooden box outside
Supply Ability: 50 Set/Sets per Month
Produkt-Beschreibung

1900 Degree Graphite Heating Vacuum Furnace For Annealing Sapphire and Sultanate (Al2O3 (OH))

Laboratory high vacuum muffle furnace Application:

Used vacuum sintering furnace  is widely used in the heat treatment of metallic material or ceramic parts in low or high vacuum, especially used in the vacuum brazing of the materials like stainless steel, high temperature alloy, hard alloy and nonferrous metal in reducibility or protective atmosphere. Can also be used for special heat treatment of materials such as carbon products in the development process of carbonation.

Product Description

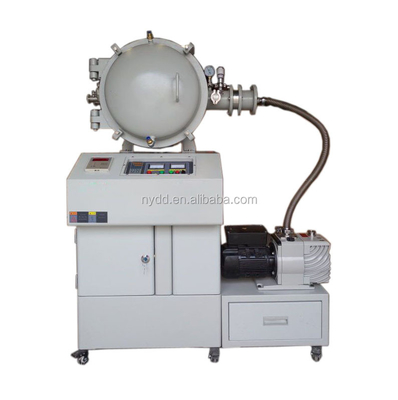

Vacuum furnace details picture:


Vacuum furance details technical specification:

Item No.SV2-2-19TP
Chamber size:100x100x100 mm, Capacity: 1 liter.
Power:2kW Max. ( power cord is included )
Voltage:AC 220V 50/60 Hz
Max. Temperature :1900 °C for short time ;
Continuous Working Temperature:1800 °C Max. ;
Max. Heating Rate:0-30 °C /min,Suggest to be 20.C/min.
Temperature Controller :PID automatic control and auto-tune function.
30/50 programmable segments for precise control.
Built in protection for overheating and broken thermocouple.
Large digital control panel for easy operation.
Temperature Accuracy :+/- 1 °C
Heating Elements :graphite rod
Thermocouple :Infrared Thermometer
Max. vacuum:100Pa,10Pa,1Pa, 10*-1pa, 10*-3pa optional.
Atmosphere:Helium (He), Neon(Ne), Argon(Ar), Krypton(Kr), Xenon(Xe), Radon(Rn), Oxygen(O2),Nitrogen (N2), Hydrogen(H2) .
Standard parts:Vacuum pump 1pc,crucible tongs 1pc,asbestos gloves 1 pair,one user manual.
Optional parts:PLC touch screen controller, paperless recorder,Remote communication control system, 2-3 gas channels mixing system desktop.



High vacuum Muffle furnace Standard Sizes:

Type

Furnace size

Delivery time

high vacuum muffle furnace

100x100x100mm

30 days

high vacuum muffle furnace

200x150x150mm

30 days

high vacuum muffle furnace

300x200x200mm

30 days

high vacuum muffle furnace

400x300x300mm

30 days

More bigger chamber size can be customized.



Warranty: One year limited warranty with lifetime support, excluding heating element

and ceramic tube damaged by user.

Attention: Any damages caused by the use of corrosive and acidic gases, and any damage

from wrong operate and use are not under the coverage of One Year Limited Warranty.
